HP12864-24

Small 1.3″ OLED 128×64 micro lcd display

Product Description

Image reversion: up/down and left/right

Applications: consumer electronics, automotive, telecoms and data transfer, medical instruments, security management, signs and display,point of sale, energy control, amusement and gambling machines, white goods,mobile phones and PDAS.

Company advantages:

Small MOQ accepted

Competitive price and short lead-time

ISO,RoHS and CE certificated factory supplied

Quality control: Our technicians and QC team test the original products one by one to ensure every products are perfect one before package and shipment.

We will test goods strictly according to our standard inspection before shipment.

If exceed this standard,clients can ask for returning and get new.

CONTACT NOW

Download

Product Description
Mechanical Diagram
Production Advantages

Product Description

Module No.:	HP12864-24-KHWG16P130
Structure:	COG
Screen Size:	1.3 inch
Number of Dots:	128 x 64
Color:	Monochrome (White)
Module Size:	34.5 x 23 x 1.427 mm
Viewing Area:	31.42 x 16.7 mm
Active Area:	29.42 x 14.7 mm
Driver IC:	SH1106G
Interface:
Connector:	FPC
Pin Number:	16
Operating Temperature:	-40～+70℃
Storage Temperature:	-40～+85℃

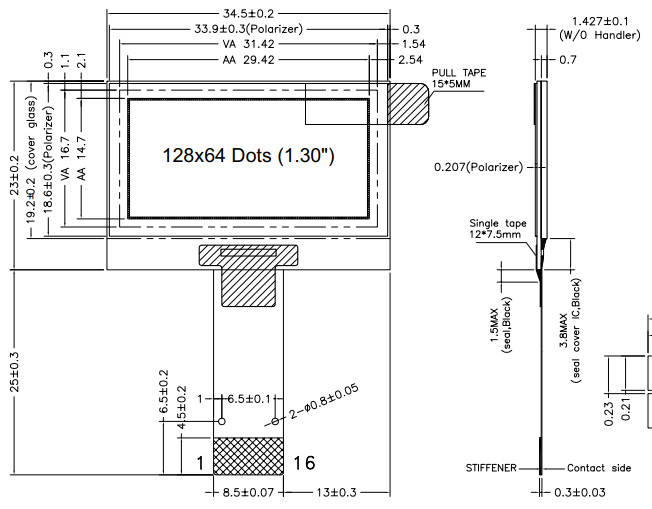

Mechanical Diagram

Small 1.3 OLED 128x64 micro lcd display (2)

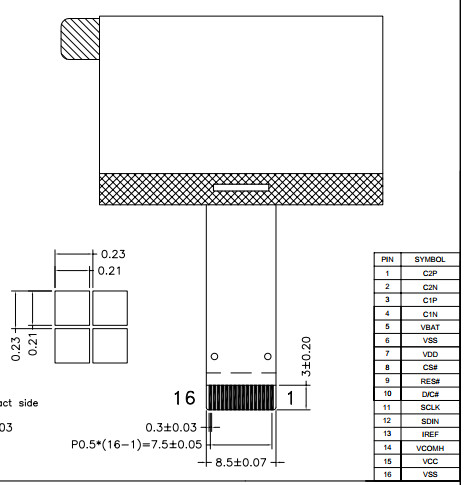

Interface Pin Description

Small 1.3 OLED 128x64 micro lcd display (3)

More Product

Packaging & Shipping

● Shipping: prompt delivery by DHL, FedEx,UPS,TNT, EMS or by air,sea.

● Delivery time: 7-10 days for goods in stock, 3-4 weeks for mass production goods

● Packaging details: packed in anti-static bags with foam box to ensure safety in transportation.

● Delivery details: 1 to 30 days. The delivery fee is up to the weight and volume of the products.

● Samples: our company offers samples for quality test or other business purposes, but we kindly ask you to pay for samples and the freight.

Production Advantages

1.High quality. Perfect quality management system, stable quality of raw materials, product quality rate of 98% or more
2.On-time delivery. Ensure that orders are delivered on time and in quantity
3.Full supply chain resources. High demand of raw materials, quality assurance of brand suppliers, perfect management system, ensuring the demand of raw material supply;
4.Constantly optimized manufacturing cost. High degree of automation of production line, comprehensively improve per capita work efficiency, stable product quality, and significantly reduce enterprise production and manufacturing costs; to achieve win-win and value-added mutual enjoyment with customers and employees.
