    Product Description

    Module No.:

    HP6448-00-TSWG28P066

    Structure:

    COG

    Screen Size:

    0.66 inch

    Number of Dots:

    64 x 48

    Color:

    Monochrome (White)

    Module Size:

    18.46 x 18.1 x 1.21 mm

    Viewing Area:

    15.42 x 12.06 mm

    Active Area:

    13.42 x 10.06 mm

    Driver IC:

    SSD1306BZ

    Interface:

    6800/8080 Interface/I2C/ 4-wire SPI

    Connector:

    FPC

    Pin Number:

    28

    Operating Temperature:

    -40~+70℃

    Storage Temperature:

    -40~+85℃

    Interface Pin Description

    PIN SYMBOL PIN SYMBOL PIN SYMBOL

    PIN

    SYMBOL

    1 N.C(GND) 8 VDD 15 E/RDW

    22

    D6

    2 C2P 9 BS1 16 DO

    23

    D7

    3 C2N 10 BS2 17 D1

    24

    IREF

    4 C1P 11 CSN 18 D2

    25

    VCOMH

    5 CIN 12 RESI 19 D3 26 VCC
    6 VBAT 13 D/1C# 20 D4 27 VLSS
    7 VSS 14 RNN 21 D5 28 NC(GND)

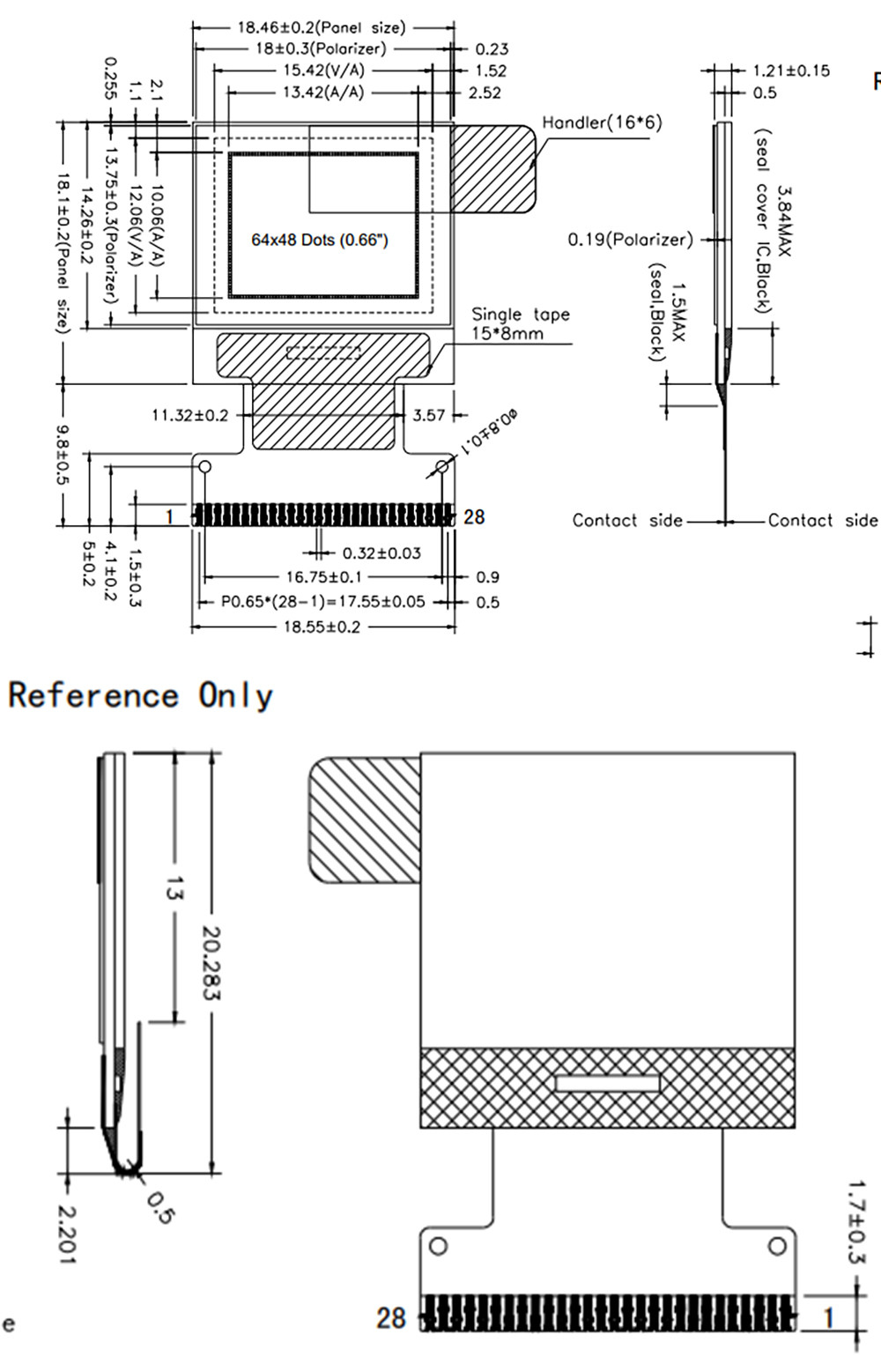

    Mechanical Diagram

    0.66 inch OLED lcd for watch-02

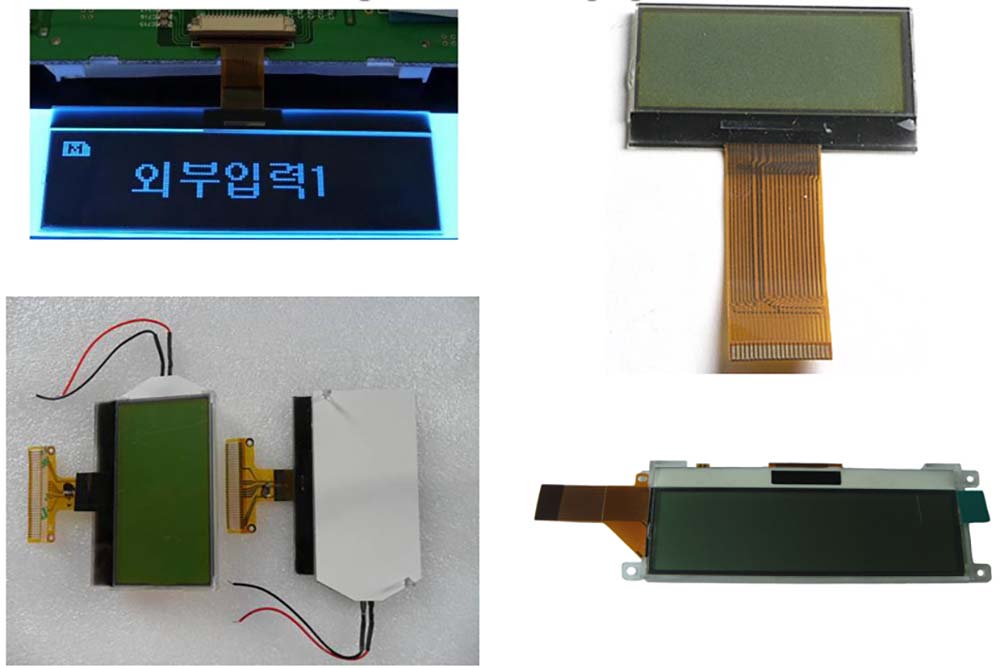

    Product Show-coglcd Module

    0.66 inch OLED lcd for watch-03 (2)
