6.86 inch 480×1280 IPS TFT Display without Touchscreen

● Type: IPS LCD

● Display Size: 6.86 inch

● Supplier Type: original manufacturer

● Brand Name: HXJ

● Resolution: 480X1280

● Viewing Angle: free

● Outline Dimension: 66.22(H)*177.19(V)*4.55(T)mm

● Active Area: 60.22(H)*160.59(V) mm

● Driver IC: HX8394 or F310PD170

● Pin number: 40

CONTACT NOW

Download

Product Description
Mechanical Diagram
Production Advantages

Product Description

Model No.	TFT686B001
Size:	6.86 inch
Display Type:	IPS
Resolution:	480*1280
Veiwing angle:	Free
Outline dimension:	66.41(H)177.19(V)4.55(T)
Active area size:	60.22(H)*160.59(V)
Touchscreen:	None
Interface:	MIPI
Controller/Driver IC:	HX8394-F310PD170
Connection type:	40 pin FPC
Operating temp.:	- 20°C ~ 70°C
Storage temp.:	- 30°C ~ 80°C

Detailed Description

The TFT686B001 is a 6.86-inch IPS LCD display manufactured by HXJ, with a resolution of 480X1280 pixels. This display features a free viewing angle, meaning that the display can be easily viewed from different directions, making it ideal for various applications.

The TFT686B001 has an active area of 60.22(H)*160.59(V)mm and an outline dimension of 66.22(H)*177.19(V)*4.55(T)mm, making it compact and space-efficient for use in portable devices. The display supports a 40-pin MIPI interface and is powered by either the HX8394 or F310PD170 driver IC.

The TFT686B001 also supports a touch panel which can be customized to meet the specific requirements of the application.

One of the most common types of MIPI interfaces is the MIPI DSI (Display Serial Interface), which is used to connect displays to the processor in a mobile device. It provides a high-bandwidth, low-latency interface for transmitting video data to the display.

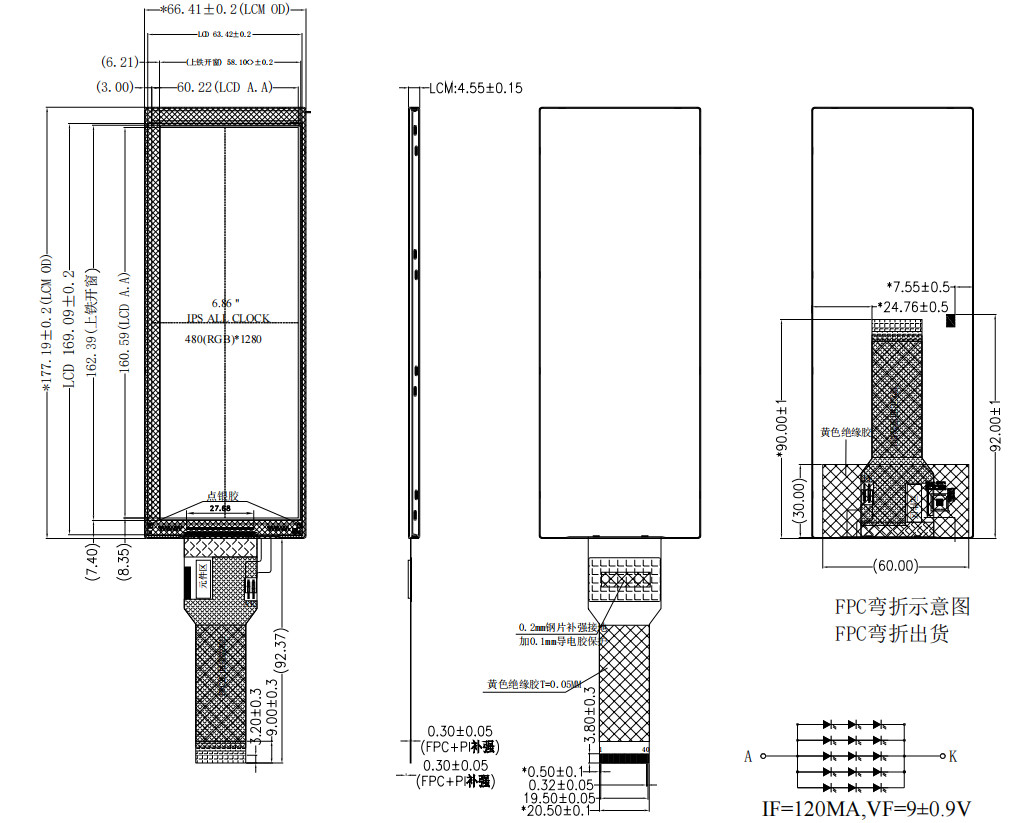

Mechanical Diagram
