Product Description
Module No.: |
HP12864-08-KSWG14P096 |
Structure: |
COG |
Screen Size: |
0.96 inch |
Number of Dots: |
128 x 64 |
Color: |
Monochrome (White) |
Module Size: |
24.74 x 16.90 x 1.42 mm |
Viewing Area: |
22.74 x 11.86 mm |
Active Area: |
21.74 x 10.86 mm |
Driver IC: |
SSD1315Z |
Interface: |
4-wire SPI |
Connector: |
FPC |
Pin Number: |
14 |
Operating Temperature: |
-40~+70℃ |
Storage Temperature: |
-40~+85℃ |

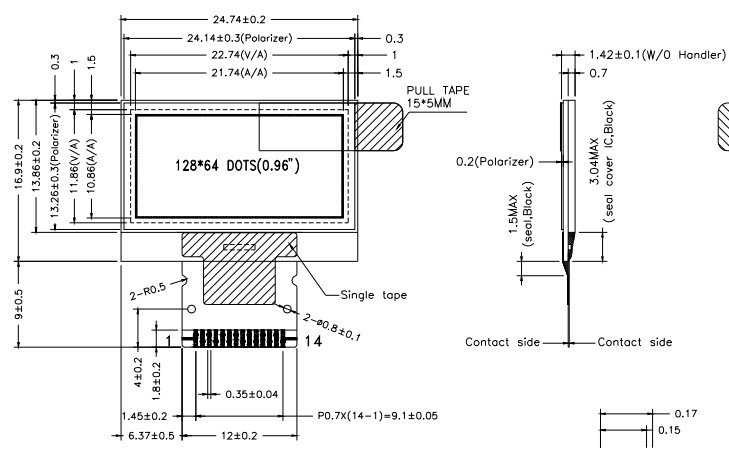

Mechanical Diagram

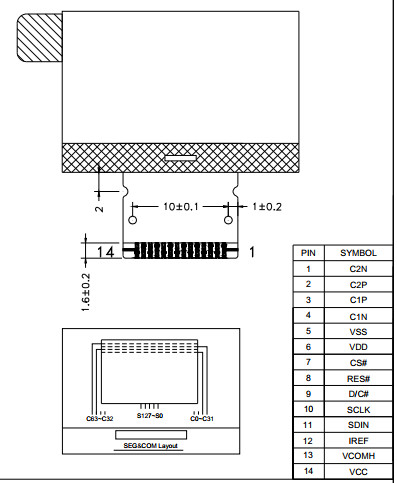

Interface Pin Description
