HP12864-03

0.96 inch OLED wearable lcd display

Our Services:

Sales Team: We have a very professional sales team.Our sourcing solutions will help you quickly find and buy the first-hand products that you need at the earliest moment.
Rapid response to your needs: Respond will be within 12 hours.Please feel free to contact us.

CONTACT NOW

Download

Product Description
Mechanical Diagram
Production Advantages

Product Description

Module No.:	HP12864-03-KSWG30P096-A
Structure:	COG
Screen Size:	0.96 inch
Number of Dots:	128 x 64
Color:	Monochrome (White)
Module Size:	26.70 x 19.26 x 1.41 mm
Viewing Area:	23.74 x 12.864 mm
Active Area:	21.744 x 10.864 mm
Driver IC:	SSD1306BZ
Interface:	6800/8080 Interface/I2C/ 4-wire SPI
Connector:	FPC
Pin Number:	30
Operating Temperature:	-40～+70℃
Storage Temperature:	-40～+85℃

Interface Pin Description

PIN	SYMBOL	PIN	SYMBOL	PIN	SYMBOL	PIN	SYMBOL
1	NC(GND)	9	VDD	17	E#	25	D7
2	C2P	10	BS0	18	D0	26	IREF
3	C2N	11	BS1	19	D1	27	VCOMH
4	C1P	12	BS2	20	D2	28	VCC
5	C1N	13	CS#	21	D3	29	VLSS
6	VBAT	14	RES#	22	D4	30	NC(GND)
7	NC	15	D/C#	23	D5
8	VSS	16	R/W#	24	D6

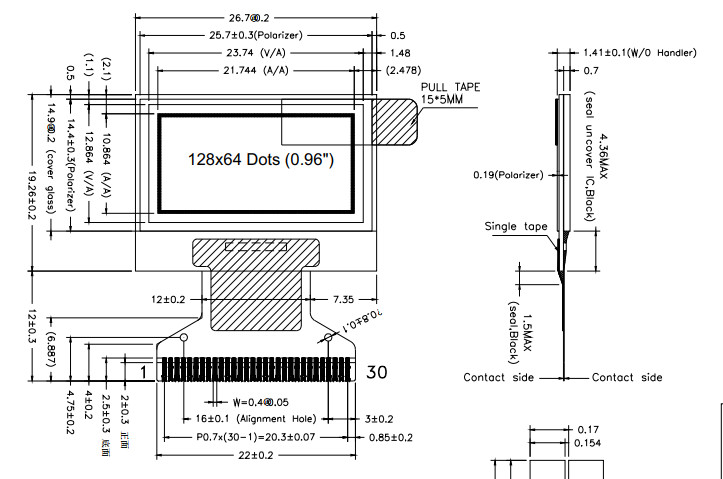

Mechanical Diagram
